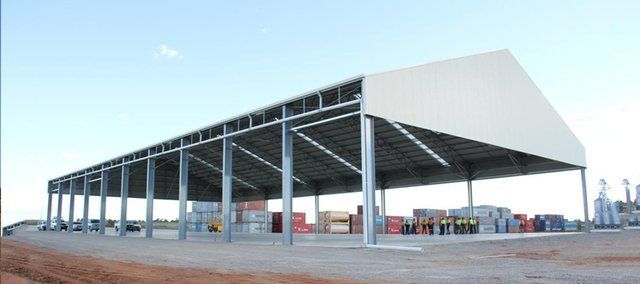

Pre Engineered Steel Buildings (PEB)

The Pre-Engineered Building (PEB) system offered by Iconic JK Steel Structures is a modern, versatile and cost-efficient construction solution widely used across industrial, commercial and institutional sectors.

Each building is engineered using advanced design software and manufactured under strict quality control to ensure the maximum strength, durability and long-term performance.

PEB systems allow quicker installation compared to conventional RCC buildings and provide superior flexibility in design and expansion.

The PEB system offers multiple advantages to the end-user; the most notable are low initial investment, fast construction time, low maintenance cost, large clear spans, infinite choice of layouts, inherent resistance to earthquakes, ease of expansion and unique attractive appearance.

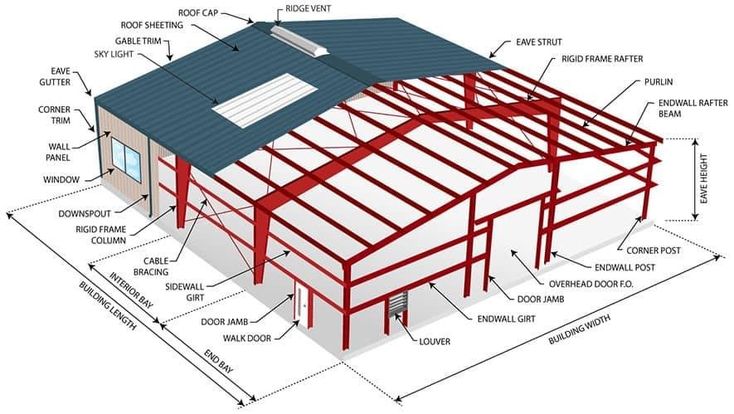

Defining a PEB Building

Pre-engineered should not be confused with pre-fabricated. The name Pre-engineered building was adopted for the following reasons:

• • Pre-set methods for connecting and welding (standardized connections)
• • Utilization of pre-determined stock sizes

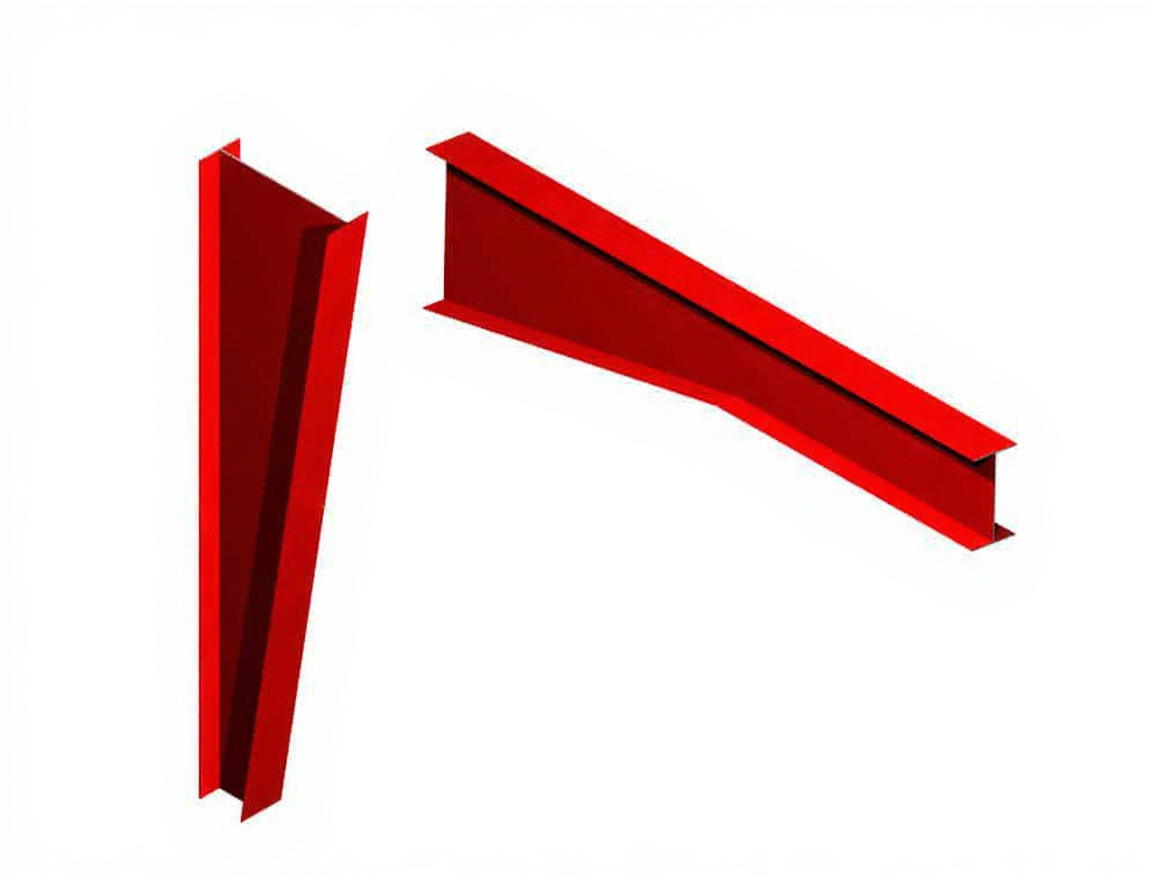

Built Up

These are made up of 3 hot rolled plates of equal or varying thicknesses welded together to form an I-Section. JK uses high grade steel plates conforming to ASTM A572M Grade 345 Type 1 (Minimum Yield Strength is 345 N/mm²).

The advantage of using a built-up section as compared to a hot rolled profile section is that the built-up section can be profiled into a tapered member that accurately adheres to the stress concentration in a building.

The built-up sections are factory painted with a minimum of 50 microns (DFT) of red or gray oxide primer as our standard or any other paint system as per customer choice.

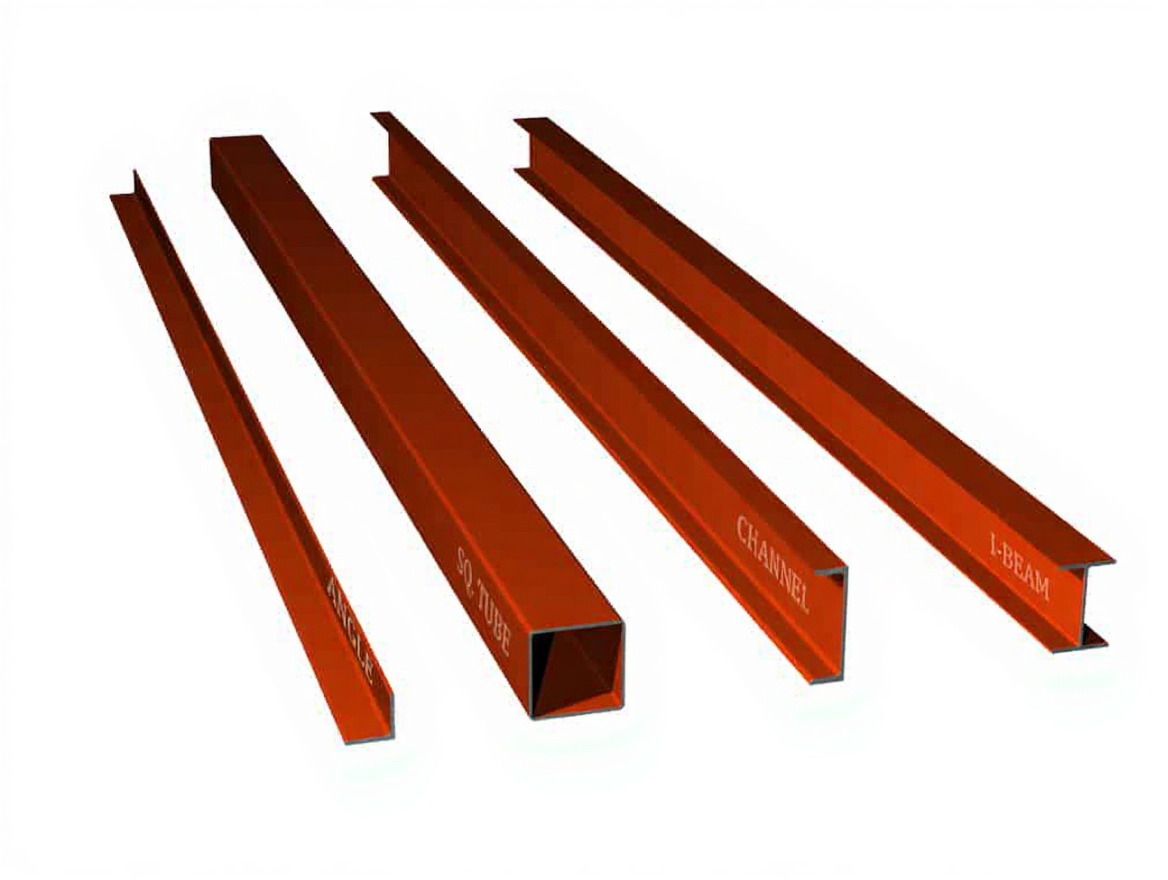

Hot Rolled

These are the general hot-rolled profiled sections available in the steel market conforming to various international standards.

JK applies minimum hot rolled sections for use as end wall columns, fascia posts, brackets, canopy framing, crane cap channels, stair stringers, strut tubes, mezzanine columns and angle bracing.The grade conforms as given below for different profiles.

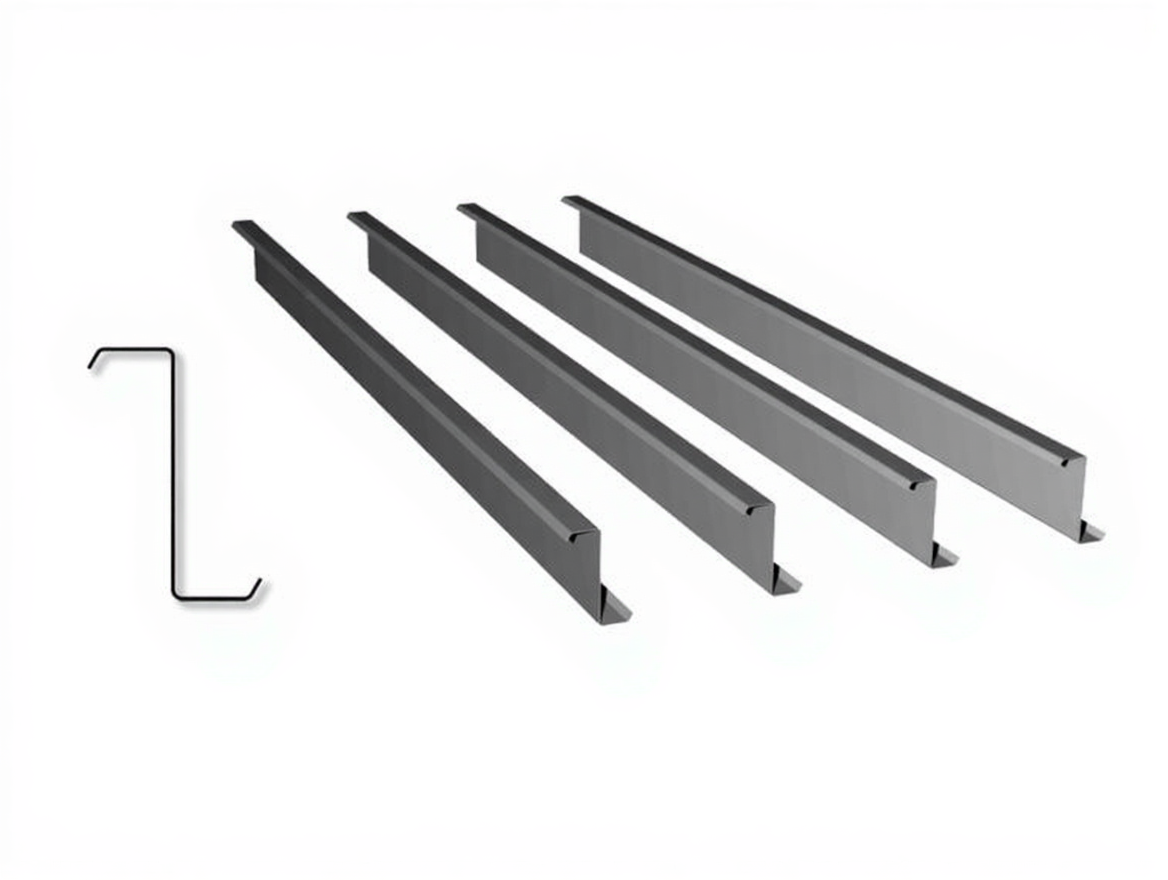

Purlins, Girts & Cold Formed Sections

Purlins, Girts, Eave Struts, Base Angles, and gable angles are cold formed from galvanized steel coils conforming to ASTM A653M Grade SS 340 Class 1 or equivalent and ranging in thickness from 1.5mm to 2.5mm.
